Water Cooling vs Air Cooling: The Ultimate Guide to Chilling Your PC

In the world of PC building, one of the most enduring debates is the ultimate battle for thermal supremacy: water cooling vs air cooling. It’s a choice every builder, from the first-timer to the seasoned veteran, has to make. Do you go with the classic, reliable tower of metal fins, or do you embrace the high-tech, sleek look of liquid? 🌡️

The truth is, there’s no single right answer. The best choice depends entirely on your budget, your performance goals, your technical comfort level, and the aesthetic you’re chasing. Your PC’s cooling system is the unsung hero that prevents your expensive components from throttling or, worse, overheating. It’s what allows your CPU and GPU to stretch their legs and deliver the performance you paid for.

In this ultimate guide, we’ll dive deep into the mechanics, pros, and cons of both cooling methods. We’ll demystify the technology, compare them head-to-head across the factors that matter most, and help you decide which side of the water cooling vs air cooling debate you fall on.

---

The Case for Air Cooling: Simplicity and Rock-Solid Reliability

Air cooling is the OG of PC thermal management. It’s a tried-and-true technology that has been refined over decades. The fundamental principle is beautifully simple and relies on the basic laws of thermodynamics.

How It Works

At its core, an air cooler is a heat sink. It works by pulling heat away from your CPU (or another component) and dissipating it into the surrounding air. This process involves a few key parts:

1. Baseplate: This is a flat piece of metal, usually copper or aluminum, that makes direct contact with the CPU’s integrated heat spreader (IHS). A thin layer of thermal paste is applied between them to fill microscopic gaps and ensure efficient heat transfer.
2. Heat Pipes: Connected to the baseplate are several sealed copper tubes containing a small amount of liquid with a low boiling point. As the CPU heats up, this liquid vaporizes. The hot gas travels up the pipe to the cooler end.
3. Fin Stack: The top of the heat pipes is woven through a large array of thin metal fins. This stack creates a massive surface area. As the hot gas inside the pipes reaches this cooler area, it condenses back into a liquid, releasing its stored heat into the fins.
4. Fan(s): A fan attached to the fin stack actively blows cooler air from inside the case across the fins. This airflow carries the dissipated heat away from the cooler and out of the PC case through exhaust fans. The now-cool liquid in the heat pipe then travels back down to the baseplate via gravity and capillary action, and the cycle repeats.

This entire process is a continuous, passive cycle within the heat pipes, driven solely by temperature differences, with the fan providing the active component to remove the heat from the system. The efficiency of this process can be represented by the principles of convective heat transfer, governed by the equation:

Q=h⋅A⋅(Ts​−Tf​)

Where Q is the heat transferred, h is the heat transfer coefficient, A is the surface area (the fin stack), Ts​ is the surface temperature of the fins, and Tf​ is the temperature of the surrounding fluid (the air). In essence, a bigger fin stack (larger A) and a faster fan (which influences h) lead to better cooling.

The Advantages of Air

• Cost-Effective: On average, air coolers are significantly cheaper than their water-cooling counterparts. You can get a high-performance air cooler that can tame even top-tier CPUs for a fraction of the price of a premium AIO (All-in-One) liquid cooler.
• Reliability and Longevity: The beauty of air cooling is its simplicity. The only moving part is the fan. There are no pumps to fail, no liquid to evaporate or leak, and no tubing to degrade over time. A good air cooler can easily outlast the rest of your PC components, often being moved from one build to the next. The fan is also easily and cheaply replaceable if it ever fails.
• Easy Installation: For most builders, installing an air cooler is a straightforward process. It typically involves a mounting bracket, a few screws, and plugging in the fan header. There’s no need to worry about radiator placement, tube routing, or potential leaks.
• Low Maintenance: Once installed, an air cooler is a “set it and forget it” component. The only maintenance required is a periodic dusting of the fin stack and fan blades to ensure optimal airflow, which you should be doing for your whole PC anyway.

---

The Allure of Water Cooling: Peak Performance and Unmatched Aesthetics

Water cooling, also known as liquid cooling, represents the pinnacle of PC thermal performance and customizability. While once the exclusive domain of hardcore enthusiasts with a penchant for plumbing, the rise of AIO (All-in-One) coolers has made it accessible to everyone.

How It Works

Liquid cooling operates on the same fundamental principle as air cooling—moving heat from a source to be dissipated elsewhere—but it uses liquid as the medium instead of heat pipes. Liquid, specifically water, has a much higher specific heat capacity than air, meaning it can absorb and transport significantly more heat energy before its temperature rises.

A liquid cooling system consists of:

1. Water Block: This is the equivalent of the air cooler’s baseplate. It mounts directly onto the CPU and is filled with small channels or fins that allow the liquid to flow through, absorbing heat directly from the component.
2. Pump: A small pump, often integrated into the water block in AIO systems, is the heart of the loop. It continuously circulates the liquid coolant.
3. Radiator: This is the liquid cooling equivalent of the fin stack. The warm liquid from the water block is pumped into the radiator, which is a series of tubes surrounded by thin fins.
4. Fans: Just like an air cooler, fans are mounted to the radiator. They push or pull air through the radiator fins, transferring the heat from the liquid into the air and away from the system.
5. Tubing: Flexible or rigid tubes connect all the components, creating a closed loop for the coolant to travel through.

There are two main types of water cooling:

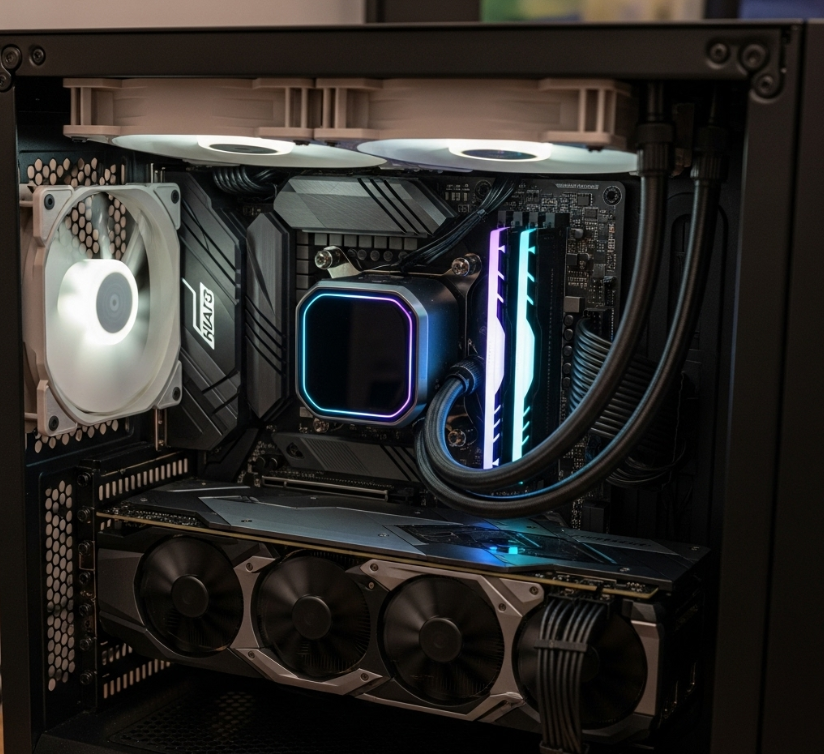

• AIO (All-in-One) Coolers: These are pre-assembled, sealed units that include the block/pump combo, tubing, and radiator. They are designed for easy installation and offer a significant performance boost over most air coolers with minimal hassle.

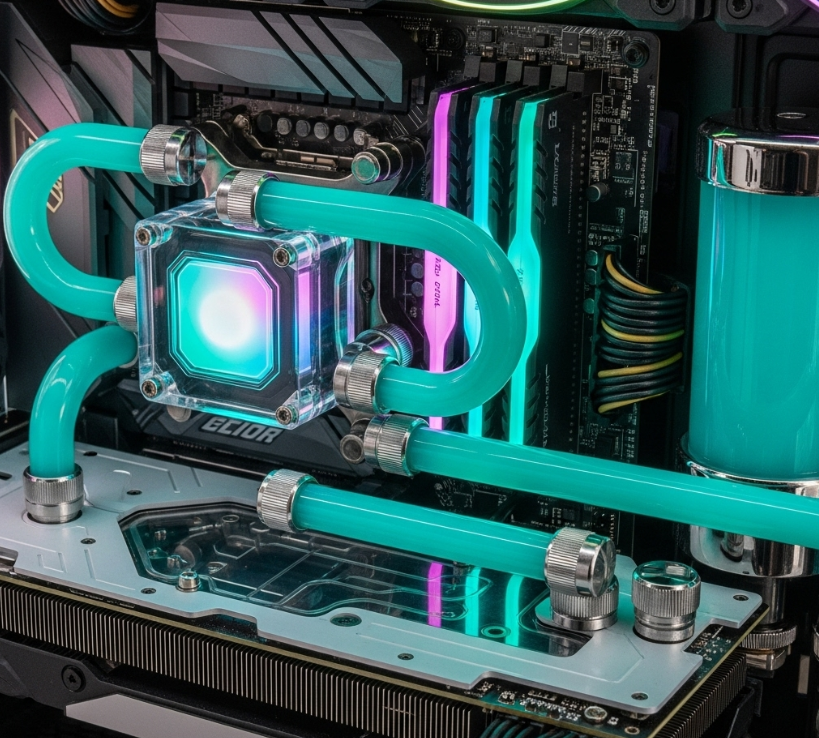

• Custom Loops: This is the enthusiast’s choice. It involves buying each component—block, pump, reservoir, radiator, fittings, and tubing—separately and assembling a unique cooling loop. It offers the absolute best performance and unparalleled aesthetic customization (colored coolants, unique tube runs) but requires a high budget, significant research, and careful assembly.

The Advantages of Water

• Superior Thermal Performance: Due to the higher thermal conductivity and heat capacity of liquid, water cooling can move heat away from the CPU faster and more efficiently than air. This results in lower overall temperatures, especially under sustained heavy loads like gaming, rendering, or scientific computing. This extra thermal headroom is crucial for overclocking, allowing you to push your CPU to its absolute limits.
• Quieter Operation (Potentially): This might seem counterintuitive, but a well-designed water cooling system can be quieter than a high-end air cooler. Because the heat is moved to a large radiator, the radiator fans can spin at a lower, quieter RPM to dissipate the same amount of heat as a smaller, more concentrated air cooler fin stack that requires a fan spinning at high speed. Under heavy load, a large 360mm AIO with three fans at 1000 RPM will often be quieter than a dual-tower air cooler with its fans screaming at 2000 RPM.
• Aesthetics and Space: Water coolers, particularly AIOs, have a clean, minimalist look that is highly prized in modern PC builds. The bulky tower of an air cooler is replaced by a small, sleek water block on the CPU, which opens up the motherboard area and provides an unobstructed view of your RAM and other components. This also improves clearance for tall RAM modules and can make working inside the case easier. Custom loops take this to another level, becoming a form of functional art within the PC. ✨

---

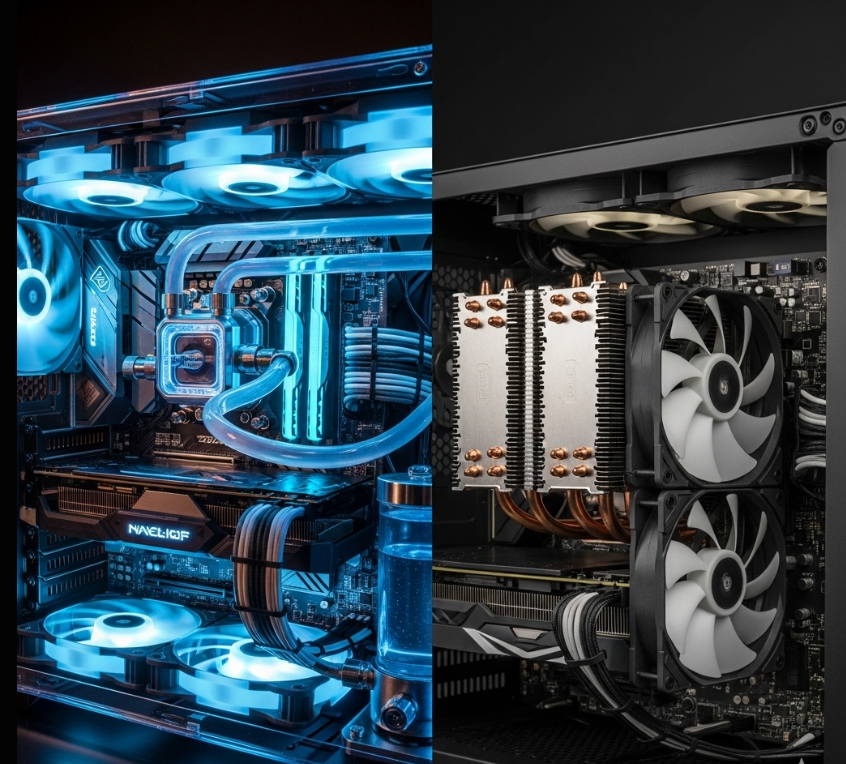

The Ultimate Showdown: Water Cooling vs Air Cooling Head-to-Head

So, how do they stack up when you compare them directly? Let’s break it down by the key factors that influence a PC builder’s decision.

Performance and Overclocking

For the average user and most gamers, a high-quality air cooler is more than sufficient. Premium models like the Noctua NH-D15 or DeepCool Assassin IV can compete with mid-range 240mm AIOs and handle nearly any consumer-grade CPU at stock speeds or with a mild overclock. However, when you start pushing high-core-count CPUs (like an Intel Core i9 or AMD Ryzen 9) with aggressive overclocks, water cooling pulls ahead. The ability to dissipate heat more rapidly gives liquid coolers, especially larger 280mm or 360mm AIOs and custom loops, a definitive edge in raw cooling potential.

• Winner: Water Cooling

Noise Levels

This is a contentious point. At idle or under light loads, both high-end air and water coolers can be virtually silent. The conflict arises under heavy, sustained loads. A top-tier air cooler may need to ramp its fans up to very high, audible speeds. A large AIO can often keep the same CPU cool with its fans spinning much slower and quieter. However, a cheap AIO with a noisy pump can be more irritating than any fan noise. The potential for silence is higher with water cooling, but it’s not guaranteed.

• Winner: Water Cooling (with caveats)

Cost

There is no competition here. Air cooling is the undisputed budget king. Decent aftermarket air coolers start around $30, while high-performance models are typically in the $70-$100 range. Entry-level AIOs start around $60-$80, with premium 360mm models easily exceeding $150-$200. Custom loops are in a league of their own, often costing $500 or more.

• Winner: Air Cooling

Installation and Maintenance

Air coolers are generally much simpler to install. You mount them and you’re done. AIOs require mounting both the CPU block and the radiator, which can be tricky depending on your case layout and clearances. Custom loops are an advanced-level project. For maintenance, air coolers just need dusting. While AIOs are largely maintenance-free, they do carry the long-term risks of pump failure or permeation (the slow evaporation of liquid through the tubing), which can degrade performance over several years.

• Winner: Air Cooling

Aesthetics and Clearance

This is subjective, but the sleek, modern aesthetic is a primary reason many people choose water cooling. The clean look of a CPU block and neatly routed tubes is undeniable. Air coolers, especially the large dual-tower models, are massive and can dominate the look of a build, sometimes covering up RGB RAM or fancy motherboard heatsinks.

• Winner: Water Cooling

Conclusion: Who Should Buy What?

The water cooling vs air cooling debate doesn’t have a universal winner, but it does have a clear winner for you.

You should choose Air Cooling if:

• You are on a tight budget.
• You prioritize reliability and longevity above all else.
• You want a simple, straightforward installation and maintenance experience.
• You are not planning on doing extreme overclocking.

You should choose Water Cooling (AIO) if:

• You want the best possible cooling performance for heavy overclocking or taming a top-of-the-line CPU.
• You value quiet operation under heavy load.
• A clean, modern aesthetic and an unobstructed view of your components are important to you.
• Your budget can accommodate a premium AIO.

Ultimately, both paths lead to a well-cooled, high-performing PC. The massive, finned towers of air coolers and the silent, flowing grace of liquid coolers are two different but equally valid philosophies of thermal design. Your choice simply reflects your priorities for your one-of-a-kind build. Happy building! 🛠️
